BiSlide® Free Motion Linear Stage
The simplest BiSlide® assembly where the slider is moved by hand.
The Velmex BiSlide® positioning stage’s modular design makes it highly configurable for a multitude of different motion-control applications. The manual BiSlide® assembly is available in a choice of linear travel distances up to 80 inches.
Constructed with hard-coat anodized, aluminum dovetail ways and smooth motion PTFE bearings; BiSlides deliver higher rigidity for longer life and more precise movement. BiSlides have a load capacity of 300 lbs. (136 kg.) horizontally and 100 lbs. (45.4 kg.) vertically. Straight-line accuracy is 0.003″ (0.076 mm) over entire travel distance. Repeatability is 0.0002 inch (0.005 mm).
Because BiSlide® components are interchangeable, they can easily be reconfigured as the need arises. One, two and three axis systems are created by simply bolting together standard components utilizing the advantages of T-slot framing.
Features
Maximum load capacity – 300 lbs. (136.1 kg.)
Maximum Travel Distance – 80″ (203.2 cm)
Specifications
Factors such as size of the motor, size of the payload, travel distance, mounting direction/plane, etc. effect the actual capability of any assembly. Please contact Velmex Application Engineers to configure a system that will meet your exact requirements.
| Coefficient of friction | .09 typical |
| Coefficient range | 0.04 (Heavy Load Dynamic) to 0.15-0.3 (Lubricated heavy Load Static>1 hour) |
| Operating temperature | 0 to 180° F (-18 to 82° C) |
Properties of Velmex Stages - Information on stage composition, tolerances, wear and design for specialty applications.
Load Parameters - Definitions and parameters that effect the various load ratings.

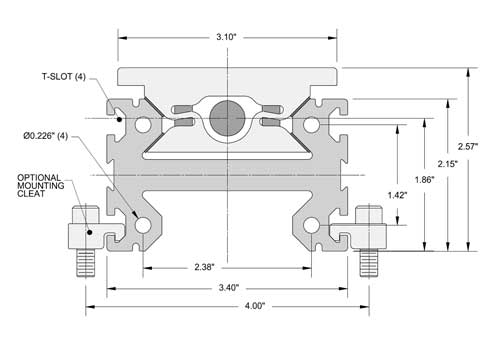

| Standard | Metric | |
| Travel Distance | 5" - 80" | 12.7 – 203.2 cm |
| Base Length | 10.35" – 85.35" | 26.29 – 216.79 cm |
| Slider Length | 5" | 12.7 cm |
| Weight | 5.9 – 28.9 lbs. | 2.7 – 13.1 kg. |
| Height | 2.44" | 6.2 cm |
| Width | 3.4" | 8.64 cm |
‡Standard travel distances available are in 5″ increments up to 20″ in length and 10″ increments over 20”.
BiSlide® Load Calculations
Note: Because of the interlocking nature of the BiSlide® carriage and the dovetail ways, the maximum recommended load centered (normal) or under thrust would be comparable whether the slide was upright (Normal – LN), Inverted (LI) or set on the Edge (LE).
| Dynamic Load | Static Load | Momentary Load | ||||
| Load Capacity | lbs. | kg. | lbs. | kg. | lbs. | kg. |
| Maximum Centered | 300 lbs. | 136.1 kg | 300 lbs. | 136.1 kg | 1000 lbs. | 453.59 kg |
| Thrust | 100 lbs. | 45.36 kg. | 200 lbs. | 90.72 kg | 300 lbs. | 136.1 kg. |
| Cantilevered | 500 lbs.-in. | 56.5 n-m |
Deflection: a = 0.000011 degrees / in-lb (F x d = in-lbs)
Standard Part Numbers
| Part Number | Travel Distance |
| MF10-0050 | 5" |
| MF10-0100 | 10" |
| MF10-0150 | 15" |
| MF10-0200 | 20" |
| MF10-0300 | 30" |
| MF10-0400 | 40" |
| MF10-0500 | 50" |
| MF10-0600 | 60" |
| MF10-0700 | 70" |
| MF10-0800 | 80" |
Options/Accessories for Free Motion Velmex BiSlides®
Several options can be added to BiSlide® Assemblies to make them more versatile and configurable with other Velmex products.
Velmex offers a multitude of options and accessories for all its products. Usually an option or an accessory will address your requirements. When it doesn’t, we can make custom modifications, including:
• Additional holes or slots. (A drawing is required.)
• Intermediate plates to mount your payload
• Special or in between lengths of the dovetail base
• Lead screw shaft extensions
• Choice of drive nut materials, including brass and Vespel
• Right and left-hand threads on the same lead screw, allowing a pair of sliders to move together or apart.
We can also offer customized configurations to address special environmental and vacuum applications.
Applications and Examples
Note: the example displayed may be a custom configuration, designed to the customer’s specifications; and not offered as a standard product. Custom configurations could contain custom, externally-fabricated components.
Downloads
The majority of CAD drawings found in our Technical Library are Step (.stp) files. You will also see .dxf, .dwg, .sat and .pdf files. For .STP files, you may need to right click on the download button and save the “target” or “link”. If you require a different format or cannot located the drawing you require, please contact us.
| Title | Summary | File Type | Link | hf:file_type |
|---|---|---|---|---|
| BiSlide Catalog | Overview of BiSlide® Assembles – manual and motorized | |||
| BiSlide Dimensional Drawing | 2D Dimensional Drawings | |||
| BiSlide User Guide LEGACY models | LegacyUser’s Operating Manual for BiSlide Assemblies built before March 2019 with StabliNut I™ drive nut. | |||
| BiSlide Users Guide Current | Current User’s Operating Manual for BiSlide Assemblies built after March 2019 with StabiNut II™ drive nut | |||
| mf10-0050.sat | Free Sliding BiSlide, 5″ Travel | sat | sat | |
| mf10-0100.sat | Free Sliding BiSlide, 10″ Travel | sat | sat | |
| mf10-0150.sat | Free Sliding BiSlide, 15″ Travel | sat | sat | |
| mf10-0200.sat | Free Sliding BiSlide, 20″ Travel | sat | sat | |
| mf10-0300.sat | Free Sliding BiSlide, 30″ Travel | sat | sat | |
| mf10-0400.sat | Free Sliding BiSlide, 40″ Travel | sat | sat | |
| mf10-0500.sat | Free Sliding BiSlide, 50″ Travel | sat | sat | |
| mf10-0600.sat | Free Sliding BiSlide, 60″ Travel | sat | sat | |
| mf10-0800.sat | Free Sliding BiSlide, 80″ Travel | sat | sat |
Knowledge Base
| Motion | Linear |
|---|---|
| Maximum Travel | 80" (203.2 cm) |
| Minimum Travel | 5" (12.7 cm) |
