BiSlide® Revolution Counter (-12, -13, -14, -15)
The mechanical counter provides a convenient lead screw revolution count. This aids in determining position and providing a reference number for the location of the carriage / slider.
Revolution Counter on BiSlide® Assembly
Resolution in .001″ or 0.01 mm increments.
The counter is standard on Knob/Crank with counter and thumb lock style BiSlide Assemblies.
Counters are adjusted to fit the displacement of the specific lead screw.

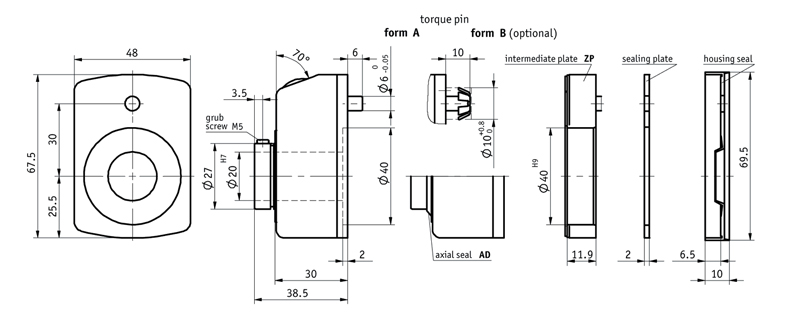

BiSlide Revolution Counter - Dimensions
