UniSlide® Thumbscrew-on-Lead-Screw Lock
An easy method to affix the slider utilizing a simple thumbscrew on the lead screw at the end bearing block of each axis.
Thumbscrew-on-Lead-Screw Lock (-TL)
The -TL option provides a simple thumbscrew lock on the lead screw at the end bearing block to securely fix the slider in place. Note that this lock increases the overall length of the UniSlide® base. This option is not available for Rapid Advance or Motorized models. To specify this feature, add “-TL” to the end of the assembly part number.

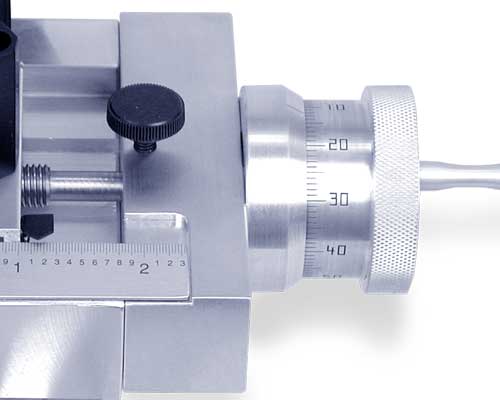

Here is an example of a Thumbscrew-on-Lead-Screw Lock on a B29 Series Elevating Table.
Here is an example of a Thumbscrew-on-Lead-Screw Lock on a UniSlide® A15 Linear Stage
UniSlide® A1503B-S1.5-TL
Downloads
The majority of CAD drawings found in our Technical Library are Step (.stp) files. You will also see .dxf, .dwg, .sat and .pdf files. For .STP files, you may need to right click on the download button and save the “target” or “link”. If you require a different format or cannot located the drawing you require, please contact us.
| Title | Summary | File Type | Link | hf:file_type |
|---|---|---|---|---|
| A1503xx-S1.5-TL.stp | Lead screw, basic knob, 1.5″ Travel, thumb lock | stp | stp | |
| A2504xxx-S2.5-TL Small Knob.stp | Lead screw, basic knob and crank, small knob, with thumb lock, 1.5″ Travel | stp | stp | |
| A2506xxx-S2.5-TL.stp | Lead screw, graduated knob and crank, 3.5″ Travel, with thumb lock | stp | stp | |
| A4006xx-S4-TL.stp | Lead screw, basic knob and crank, 2″ Travel, thumb lock | stp | stp | |
| A4009xx-S4-TL.stp | Lead screw, basic knob and crank, 5″ Travel, thumb lock | stp | stp | |
| A6009xx-S6-SLL-RC.stp | Lead screw, knob and crank, 3″ Travel, with slider lock and rev. counter | stp | stp | |
| A6009xx-S6-TL.stp | Lead screw, knob and crank, 3″ Travel, with thumb lock | stp | stp | |
| A6012xx-S6-TL.stp | Lead screw, knob and crank, 6″ Travel with thumb lock | stp | stp | |
| AXY4006xx-TL.sat | Drawing for the Thumblocks on an XY Table – Series AXY4006 | sat | sat | |
| AXY4006xx-TL.stp | Drawing for the Thumblocks on an XY Table – Series AXY4006 | stp | stp |
